Product features
1.7.5-inch color touch screen, friendly and convenient control interface;
2.Built-in rechargeable lithium battery power supply, large capacity and long battery life;

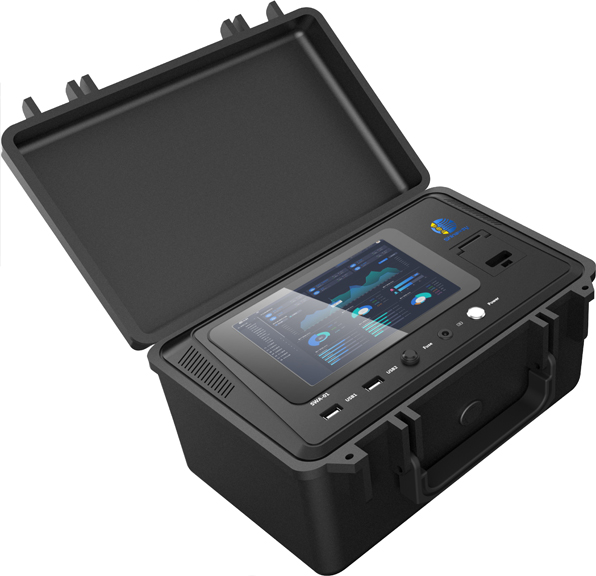

3.Suitcase protection shell design, easy to carry;
4.Yes The use environment is low, and it can be quickly deployed on simple houses and vehicles, suitable for field site and mobile site testing;
5.Chip packaging and integrated sample pre-processing technology to avoid sample contamination and improve the automation level of the instrument;
6.Low reagent consumption, saving detection cost, PCR reaction time can be shortened to 8 minutes;
7.High detection sensitivity, the lowest detection limit can reach single molecule level;
8.New detection optical path design, eliminating impurities The interference of astigmatism further improves the reliability of detection;
9.Adopting artificial intelligence image segmentation algorithm, accurate and efficient data processing system;
10.With a large-capacity memory card, it can be connected to a wireless network for easy data storage and transmission.
| technical indicators | parameters |
| Temperature control range | 40-105℃ |
| Max heating rate | >30℃/s |
| Max cooling rate | >10℃/s |
| Heating rate | 20℃/s |
| Cooling rate | 5℃/s |
| Temperature accuracy | <±0.5℃ |
| Temperature uniformity | >95% |
| Chip reaction volume range | 2-20uL |
| Fluorescence channel | FAM |
| Micro heater power | 20W |
| Battery output voltage | 29.4V |
| Overall quality | 3kg |
| Size | 330mm(L)×320mm(W)×160mm(H) |
| Operating software | Control system of portable fast microfluidic PCR instrument v1.0 |
| operating system | Linux operating system |
| Signal interface | USB,HDMI,Ethernet |
