Product features

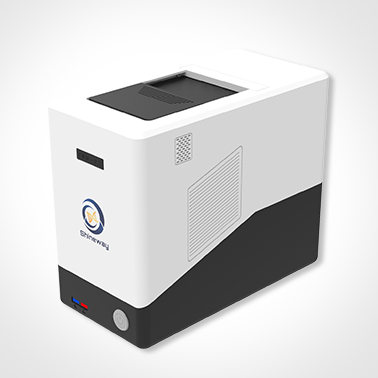

The Real-time PCR Nucleic Acid Detection System(SWM02) is an upgraded version of SWM01, which simplifies the detection process and reduces the operation difficulty. The plug-in design is available 24 hours a day. The same reagent consumption has a higher cost performance.
Software: Simplified and intelligent software system
Hardware: Advanced multiple fluorescent nucleic acid detection system, support multi-item detection
Compatible: It can interconnect hospital LIS and HIS systems, and remotely upgrade via internet
Application: Multi-item reaction can be set, and the test can be completed as soon as 15 min
| Technical Index | Value |
| Temperature control range | 40-105℃ |
| Max heating rate | 30℃/s |
| Max cooling rate | 10℃/s |
| Temperature accuracy | ±0.5℃ |
| Temperature uniformity | ±1℃ |
| Reaction volume range | 2-20μL |
| Sample Capacity | 3-6wells(1-2chips) |
| Fluorescence channel | FAM,HEX and Cy5 |
| Power | ≤100VA |
| Use the power supply | AC 100-240V 50/60Hz |
| Overall quality | 4.9kg |
| Dimension | 310mm(L) x 155mm(W) x 275mm(H) |
